External Application Interaction

A common scenario is to have a separate workflow server that handles the orchestration of tasks, and a separate application that is responsible for executing these tasks.

To see how this works, we will create two ASP.NET Core Web applications that communicate with each other using webhooks:

ElsaServer: an ASP.NET Core Web application scaffolded from this guide.
Onboarding: another ASP.NET Core Web Application that exposes a webhook endpoint to receive events from the workflow server and provides UI to the user to view and complete tasks.

Together, the two applications implement an employee onboarding process. The role of the workflow server is to orchestrate the process, while the onboarding app is responsible for executing individual tasks requested by the workflow server to execute. The workflow server will leverage the RunTask activity to request tasks to be executed by the Onboarding app.

These tasks will be completed by a human user. As a task is marked as completed, a signal in the form of an HTTP request is sent back to the workflow server, which then proceeds to the next step in the process.

Before you start

For this guide, we will need the following:

An Elsa Server project
An Elsa Studio container

Please return here when you are ready.

Elsa Server

We will start by configuring the Elsa Server project with the ability to send webhook events.

Configuring Webhooks

Add Webhooks Package

Add the following package to ElsaServer.csproj:

dotnet add package Elsa.Webhooks

Update Program.cs

To enable webhooks, update Program.cs by adding the following code to the Elsa builder delegate:

Program.cs

elsa.UseWebhooks(webhooks =>
{
    webhooks.WebhookOptions = options =>
    {
        builder.Configuration.GetSection("Webhooks").Bind(options);
    };
});

This will add webhook definitions from appsettings.json, which we configure next.

Update appsettings.json

Update appsettings.json by adding the following section:

appsettings.json

{
    "Webhooks": {
        "Endpoints": [
            {
                "EventTypes": [
                    "RunTask"
            ],
            "Url": "https://localhost:5002/api/webhooks/run-task"
            }
        ]
    }
}

With this setup, the workflow server will invoke the configured URL everytime the RunTask activity executes.

Creating the Workflow

We'll see how to create the workflow using the programmatic approach as well as using the designer.

Programmatic

To create the Onboarding workflow, follow these steps:

Create Workflow Class

Create a new class called Onboarding:

Workflows/Onboarding.cs

using Elsa.Extensions;
using Elsa.Workflows;
using Elsa.Workflows.Activities;
using Elsa.Workflows.Contracts;
using Elsa.Workflows.Runtime.Activities;
using Parallel = Elsa.Workflows.Activities.Parallel;

namespace ElsaServer.Workflows;

public class Onboarding : WorkflowBase
{
    protected override void Build(IWorkflowBuilder builder)
    {
        var employee = builder.WithVariable<object>();
        builder.Root = new Sequence
        {
            Activities =
            {
                new SetVariable
                {
                    Variable = employee,
                    Value = new(context => context.GetInput("Employee"))
                },
                new RunTask("Create Email Account")
                {
                    Payload = new(context => new Dictionary<string, object>
                    {
                        ["Employee"] = employee.Get(context)!,
                        ["Description"] = "Create an email account for the new employee."
                    })
                },
                new Parallel
                {
                    Activities =
                    {
                        new RunTask("Create Slack Account")
                        {
                            Payload = new(context => new Dictionary<string, object>
                            {
                                ["Employee"] = employee.Get(context)!,
                                ["Description"] = "Create a Slack account for the new employee."
                            })
                        },
                        new RunTask("Create GitHub Account")
                        {
                            Payload = new(context => new Dictionary<string, object>
                            {
                                ["Employee"] = employee.Get(context)!,
                                ["Description"] = "Create a GitHub account for the new employee."
                            })
                        },
                        new RunTask("Add to HR System")
                        {
                            Payload = new(context => new Dictionary<string, object>
                            {
                                ["Employee"] = employee.Get(context)!,
                                ["Description"] = "Add the new employee to the HR system."
                            })
                        }
                    }
                },
                new End()
            }
        };
    }
}

The above workflow will be registered with the workflow engine automatically since the Elsa Server is configured to find all workflows in the same assembly of the Program class.

With that in place, let's create the Onboarding application next.

Designer

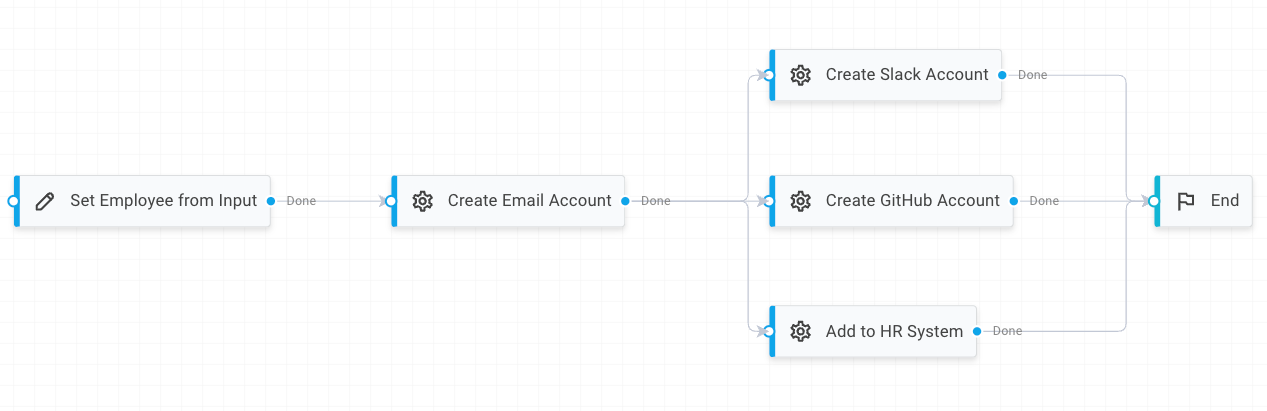

We will create the following workflow using Elsa Studio:

Download and Import

You can download the workflow and import it using Elsa Studio.

Designing the Workflow

Start the workflow server application and the Elsa Studio container connected to the server.

To create the workflow, follow these steps:

Create Workflow

From the main menu, select Workflows | Definitions and click the Create Workflow button.
Enter Employee Onboarding in the Name field.
Click OK to create the workflow.

Add Employee Variable

When we execute the workflow later on, we will be sending along information about the employee to onboard.

To capture this employee input, we will store it in a variable called Employee.

From the Variables tab, create a new variable called Employee of type Object.

Add Set Employee Activity

From the Activity Picker, drag and drop the Set Variable activity on the design canvas and configure its input fields as follows:

Variable Employee
Value

getInput("Employee")

return Input.Get("Employee");

Add Create Email Account Activity

Now it is time to create an email account for the new employee.

The workflow server itself will not perform this task; instead, it will send a webhook event to the Onboarding application that we will create later on.

To send this webhook event, we leverage the Run Task activity.

Add the Run Task activity to the design surface and configure it as follows:

Task Name Create Email Account
Payload

return {
   employee: getEmployee(),
   description: "Create an email account for the new employee."
}

return new
{
   Employee = Variables.Employee,
   Description = "Create an email account for the new employee."
};

Add Create Slack Account Activity

Now that the email account has been setup for the new employee, it is time to setup their Slack account.

Just like the Create Email Account task, the workflow should send a webhook event to the Onboarding application using another Run Task activity.

Add the Run Task activity to the design surface and configure it as follows:

Task Name Create Slack Account
Payload

return {
    employee: getEmployee(),
    description: "Create a Slack account for the new employee."
}

return new {
    Employee = Variables.Employee,
    Description = "Create a Slack account for the new employee."
};

Add Create GitHub Account Activity

At the same time that the Slack account is being created, the Onboarding app should be able to go ahead and create a GitHub account at the same time.

Here, too, the workflow should send a webhook event to the Onboarding application using another Run Task activity.

Add another Run Task activity to the design surface and configure it as follows:

Task Name Create GitHub Account
Payload

return {
    employee: getEmployee(),
    description: "Create a GitHub account for the new employee."
}

return new {
    Employee = Variables.Employee,
    Description = "Create a GitHub account for the new employee."
};

Add Add to HR System Activity

While a Slack account and a GitHub account are being provisioned for the new employee, they should be added to the HR system.

As you might have guessed, the workflow should send a webhook event to the Onboarding application using another Run Task activity.

Add another Run Task activity to the design surface and configure it as follows:

Task Name Add to HR System
Payload

return {
    employee: getEmployee(),
    description: "Add the new employee to the HR system."
}

return new {
    Employee = Variables.Employee,
    Description = "Add the new employee to the HR system."
};

Add End Activity

Although this step is optional, it is generally a good idea to be explicit and signify the end of the workflow.

Connect Activities

Now that we have all the pieces on the board, let's connect them together as shown in the above visual.

Publish the Workflow

Before we can invoke the workflow, we need to publish our changes by clicking the Publish button.

Creating the Onboarding Application

To create the Onboarding application, we will create a new project based on the MVC Web Application template.

The purpose of this application is to receive webhook events from the workflow server and create Task records in the database.

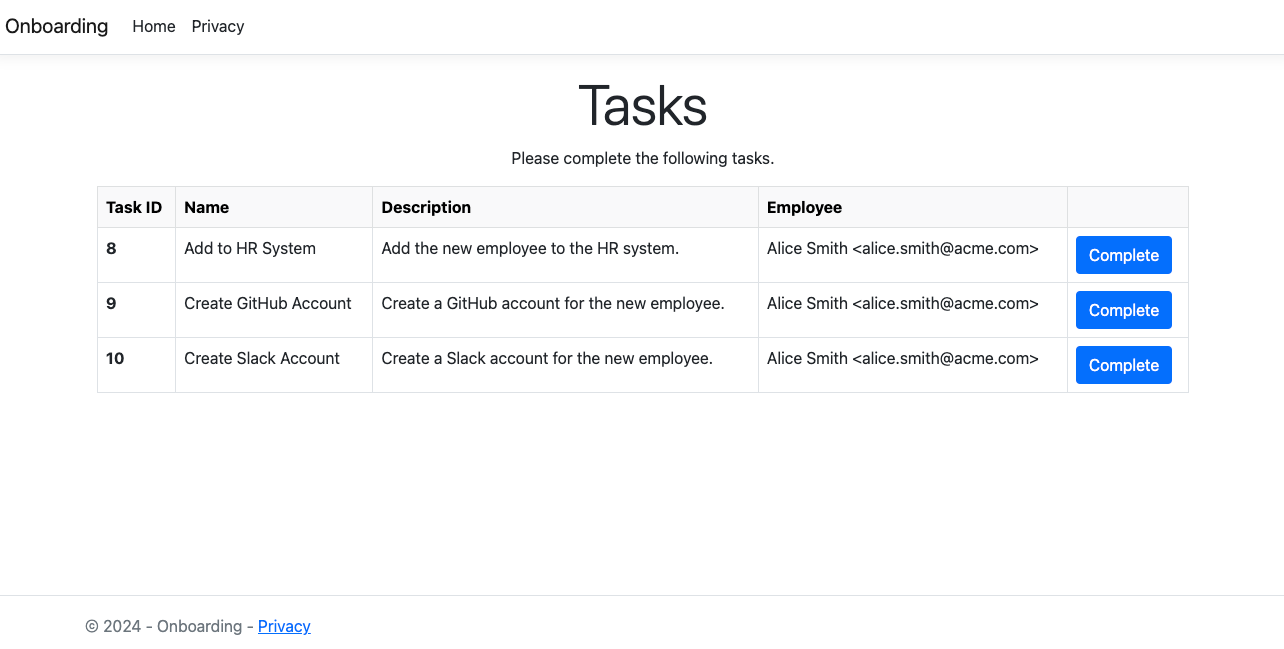

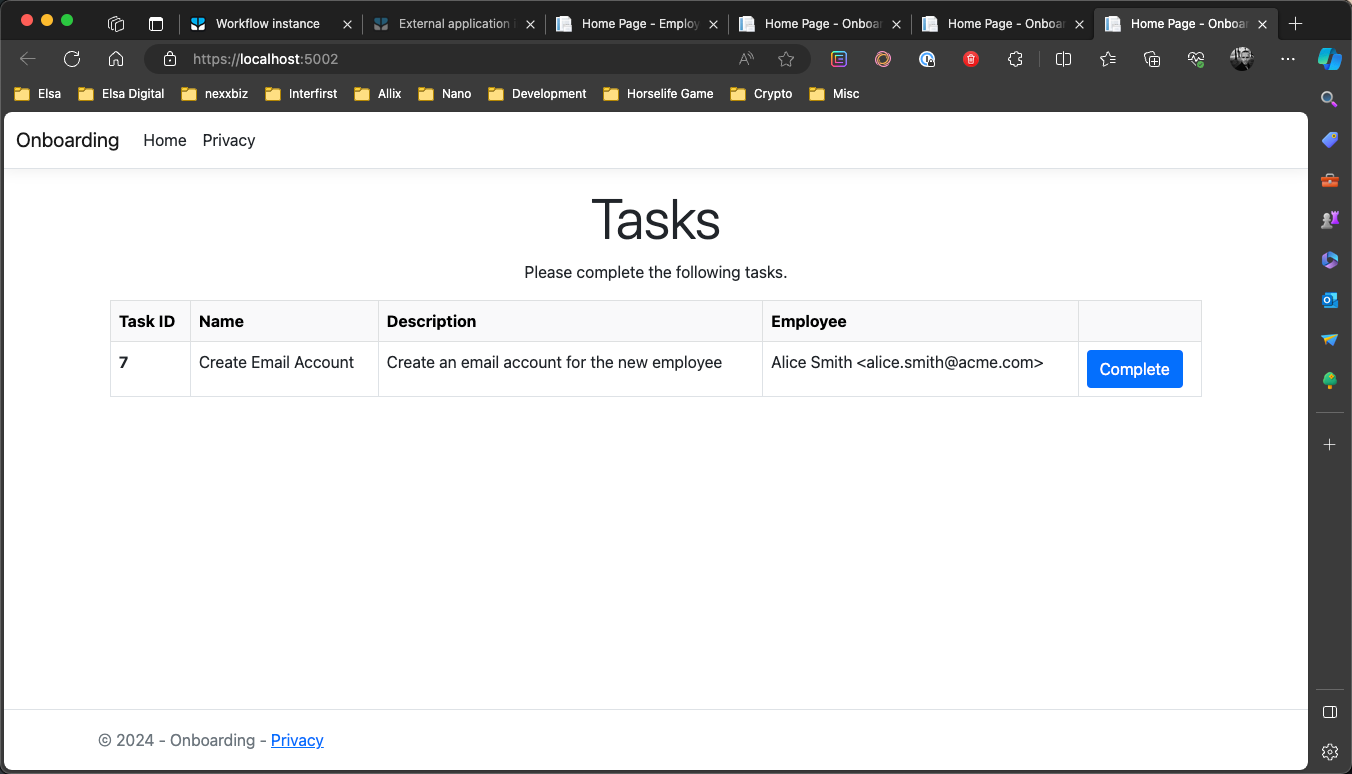

The UI of the application will display a list of these tasks and allow the user to click a Complete button.

Upon clicking this button, the application will send an HTTP request to the workflow server to resume the Onboarding workflow.

Follow these steps to create the Onboarding application:

Create Project

Run the following command to generate a new MVC Application:

dotnet new mvc -o Onboarding

Add Packages

Navigate into the project directory:

cd Onboarding

Then add the following packages:

dotnet add package Microsoft.EntityFrameworkCore
dotnet add package Microsoft.EntityFrameworkCore.Sqlite
dotnet add package Microsoft.EntityFrameworkCore.Design
dotnet add package Microsoft.EntityFrameworkCore.Sqlite.Design
dotnet add package Elsa.EntityFrameworkCore
dotnet add package Elsa.EntityFrameworkCore.Sqlite

Create OnboardingTask Entity

For this application, we'll use Entity Framework Core to store the onboarding tasks in a SQLite database. First, let's model the onboarding task by creating a new class called OnboardingTask:

Entities/OnboardingTask.cs

namespace Onboarding.Entities;

/// <summary>
/// A task that needs to be completed by the user.
/// </summary>
public class OnboardingTask
{
    /// <summary>
    /// The ID of the task.
    /// </summary>
    public long Id { get; set; }

    /// <summary>
    /// An external ID that can be used to reference the task.
    /// </summary>
    public string ExternalId { get; set; } = default!;

    /// <summary>
    /// The ID of the onboarding process that the task belongs to.
    /// </summary>
    public string ProcessId { get; set; } = default!;

    /// <summary>
    /// The name of the task.
    /// </summary>
    public string Name { get; set; } = default!;

    /// <summary>
    /// The task description.
    /// </summary>
    public string Description { get; set; } = default!;

    /// <summary>
    /// The name of the employee being onboarded.
    /// </summary>
    public string EmployeeName { get; set; } = default!;

    /// <summary>
    /// The email address of the employee being onboarded.
    /// </summary>
    public string EmployeeEmail { get; set; } = default!;

    /// <summary>
    /// Whether the task has been completed.
    /// </summary>
    public bool IsCompleted { get; set; }

    /// <summary>
    /// The date and time when the task was created.
    /// </summary>
    public DateTimeOffset CreatedAt { get; set; }

    /// <summary>
    /// The date and time when the task was completed.
    /// </summary>
    public DateTimeOffset? CompletedAt { get; set; }
}

OnboardingDbContext

Next, let's create the database context:

Data/OnboardingDbContext.cs

using Onboarding.Entities;
using Microsoft.EntityFrameworkCore;

namespace Onboarding.Data;

public class OnboardingDbContext(DbContextOptions<OnboardingDbContext> options) : DbContext(options)
{
    public DbSet<OnboardingTask> Tasks { get; set; } = default!;
}

Program.cs

Update Program.cs to register the DB context with DI:

Program.cs

builder.Services.AddDbContextFactory<OnboardingDbContext>(options => options.UseSqlite("Data Source=onboarding.db"));

Create Migrations

In order to have the application generate the necessary database structure automatically for us, we need to generate migration classes.

Run the following command to do so:

dotnet ef migrations add Initial

Apply Migrations

Run the following command to apply the migrations:

dotnet ef database update

This will apply the migration and generate the Task table in the onboarding.db SQLite database.

Task List UI

Now that we have our database access layer setup, let's work on the UI to display a list of tasks. For that, we will first introduce a view model called IndexViewModel for the Index action of the homeController:

Views/Home/IndexViewModel.cs

using Onboarding.Entities;

namespace Onboarding.Views.Home;

public class IndexViewModel(ICollection<OnboardingTask> tasks)
{
    public ICollection<OnboardingTask> Tasks { get; set; } = tasks;
}

HomeController

Update the Index action of the HomeController to use the view model:

Controllers/HomeController.cs

using System.Diagnostics;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using Onboarding.Data;
using Onboarding.Models;
using Onboarding.Services;
using Onboarding.Views.Home;

namespace Onboarding.Controllers;

public class HomeController(OnboardingDbContext dbContext, ElsaClient elsaClient, ILogger<HomeController> logger) : Controller
{
    public async Task<IActionResult> Index(CancellationToken cancellationToken)
    {
        var tasks = await dbContext.Tasks.Where(x => !x.IsCompleted).ToListAsync(cancellationToken: cancellationToken);
        var model = new IndexViewModel(tasks);
        return View(model);
    }

    public IActionResult Privacy()
    {
        return View();
    }

    [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
    public IActionResult Error()
    {
        return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
    }
}

Index.cshtml

Update the Index.cshtml view to display the list of tasks:

Views/Home/Index.cshtml

@model Onboarding.Views.Home.IndexViewModel
@{
    ViewData["Title"] = "Home Page";
}

<div class="text-center">
    <h1 class="display-4">Tasks</h1>
    <p>Please complete the following tasks.</p>
</div>

<div class="container">
    <table class="table table-bordered table-hover">
        <thead class="table-light">
        <tr>
            <th scope="col">Task ID</th>
            <th scope="col">Name</th>
            <th scope="col">Description</th>
            <th scope="col">Employee</th>
            <th scope="col"></th>
        </tr>
        </thead>
        <tbody>
        @foreach (var task in Model.Tasks)
        {
            <tr>

                <th scope="row">@task.Id</th>
                <td>@task.Name</td>
                <td>@task.Description</td>
                <td>@($"{task.EmployeeName} <{task.EmployeeEmail}>")</td>
                <td>
                    <form asp-action="CompleteTask">
                        <input type="hidden" name="TaskId" value="@task.Id"/>
                        <button type="submit" class="btn btn-primary">Complete</button>
                    </form>
                </td>
            </tr>
        }
        </tbody>
    </table>
</div>

Handling Task Completion

The HomeController is able to list pending tasks. Now, let's add another action to it that can handle the event when a user clicks the Complete button.

Add the following action method to HomeController:

public async Task<IActionResult> CompleteTask(int taskId, CancellationToken cancellationToken)
{
    var task = dbContext.Tasks.FirstOrDefault(x => x.Id == taskId);

    if (task == null)
        return NotFound();

    await elsaClient.ReportTaskCompletedAsync(task.ExternalId, cancellationToken: cancellationToken);

    task.IsCompleted = true;
    task.CompletedAt = DateTimeOffset.Now;

    dbContext.Tasks.Update(task);
    await dbContext.SaveChangesAsync(cancellationToken);

    return RedirectToAction("Index");
}

The complete controller should look like this:

Controllers/HomeController.cs

using System.Diagnostics;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;
using Onboarding.Data;
using Onboarding.Models;
using Onboarding.Services;
using Onboarding.Views.Home;

namespace Onboarding.Controllers;

public class HomeController(OnboardingDbContext dbContext, ElsaClient elsaClient, ILogger<HomeController> logger) : Controller
{
    public async Task<IActionResult> Index(CancellationToken cancellationToken)
    {
        var tasks = await dbContext.Tasks.Where(x => !x.IsCompleted).ToListAsync(cancellationToken: cancellationToken);
        var model = new IndexViewModel(tasks);
        return View(model);
    }

    public async Task<IActionResult> CompleteTask(int taskId, CancellationToken cancellationToken)
    {
        var task = dbContext.Tasks.FirstOrDefault(x => x.Id == taskId);

        if (task == null)
            return NotFound();

        await elsaClient.ReportTaskCompletedAsync(task.ExternalId, cancellationToken: cancellationToken);

        task.IsCompleted = true;
        task.CompletedAt = DateTimeOffset.Now;

        dbContext.Tasks.Update(task);
        await dbContext.SaveChangesAsync(cancellationToken);

        return RedirectToAction("Index");
    }

    public IActionResult Privacy()
    {
        return View();
    }

    [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
    public IActionResult Error()
    {
        return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
    }
}

The above listing uses the ElsaClient to report the task as completed, which we will create next.

Elsa API Client

To interact with the Elsa Server's REST API, we will create an HTTP client called ElsaClient.

Create a new class called ElsaClient:

Services/ElsaClient.cs

namespace Onboarding.Services;

/// <summary>
/// A client for the Elsa API.
/// </summary>
public class ElsaClient(HttpClient httpClient)
{
    /// <summary>
    /// Reports a task as completed.
    /// </summary>
    /// <param name="taskId">The ID of the task to complete.</param>
    /// <param name="result">The result of the task.</param>
    /// <param name="cancellationToken">An optional cancellation token.</param>
    public async Task ReportTaskCompletedAsync(string taskId, object? result = default, CancellationToken cancellationToken = default)
    {
        var url = new Uri($"tasks/{taskId}/complete", UriKind.Relative);
        var request = new { Result = result };
        await httpClient.PostAsJsonAsync(url, request, cancellationToken);
    }
}

Register ElsaClient

Update Program.cs to configure the Elsa HTTP client as follows:

Program.cs

var configuration = builder.Configuration;

builder.Services.AddHttpClient<ElsaClient>(httpClient =>
{
    var url = configuration["Elsa:ServerUrl"]!.TrimEnd('/') + '/';
    var apiKey = configuration["Elsa:ApiKey"]!;
    httpClient.BaseAddress = new Uri(url);
    httpClient.DefaultRequestHeaders.Authorization = new AuthenticationHeaderValue("ApiKey", apiKey);
});

appsettings.json

The Elsa configuration section used in the previous step is defined in appsettings.json as follows:

appsettings.json

{
    "Elsa": {
        "ServerUrl": "https://localhost:5001/elsa/api",
        "ApiKey": "00000000-0000-0000-0000-000000000000"
    }
}

Receiving Webhooks

Now that we have a way to display the list of task, let's setup a webhook controller that can receive tasks from the workflow server.

Create a new controller called WebhookController:

Controllers/WebhookController.cs

using Onboarding.Data;
using Onboarding.Entities;
using Onboarding.Models;
using Microsoft.AspNetCore.Mvc;

namespace Onboarding.Controllers;

[ApiController]
[Route("api/webhooks")]
public class WebhookController(OnboardingDbContext dbContext) : Controller
{
    [HttpPost("run-task")]
    public async Task<IActionResult> RunTask(WebhookEvent webhookEvent)
    {
        var payload = webhookEvent.Payload;
        var taskPayload = payload.TaskPayload;
        var employee = taskPayload.Employee;

        var task = new OnboardingTask
        {
            ProcessId = payload.WorkflowInstanceId,
            ExternalId = payload.TaskId,
            Name = payload.TaskName,
            Description = taskPayload.Description,
            EmployeeEmail = employee.Email,
            EmployeeName = employee.Name,
            CreatedAt = DateTimeOffset.Now
        };

        await dbContext.Tasks.AddAsync(task);
        await dbContext.SaveChangesAsync();

        return Ok();
    }
}

The above listing uses the WebhookEvent model to deserialise the webhook payload. The WebhookEvent and related models are defined as follows:

Models/WebhookEvent.cs

namespace Onboarding.Models;

public record WebhookEvent(string EventType, RunTaskWebhook Payload, DateTimeOffset Timestamp);
public record RunTaskWebhook(string WorkflowInstanceId, string TaskId, string TaskName, TaskPayload TaskPayload);
public record TaskPayload(Employee Employee, string Description);
public record Employee(string Name, string Email);

Running the Onboarding Process

Now that we have both the Elsa Server and Onboarding applications ready, let's try it out.

Start Onboarding App

Run the Onboarding project:

dotnet run --urls=https://localhost:5002

Start Onboarding Workflow

To initiate a new execution of the Onboarding workflow, we will send an HTTP request to Elsa Server's REST API that can execute a workflow by its definition ID and receive input.

As input, we will send a small JSON payload that represents the new employee to onboard:

curl --location 'https://localhost:5001/elsa/api/workflow-definitions/{workflow_definition_id}/execute' \
        --header 'Content-Type: application/json' \
        --header 'Authorization: ApiKey 00000000-0000-0000-0000-000000000000' \
        --data-raw '{
        "input": {
            "Employee": {
            "Name": "Alice Smith",
            "Email": "alice.smith@acme.com"
        }
    }
}'

Make sure to replace {workflow_definition_id} with the actual workflow definition ID of the Onboarding workflow.

View Tasks

The effect of the above request is that a new task will be created in the database, which will be displayed in the web application:

Complete Tasks

When you click the Complete button, the task will be marked as completed in the database and the workflow will continue. When you refresh the Task list page, the task will be gone, but 3 new tasks will be created in the database:

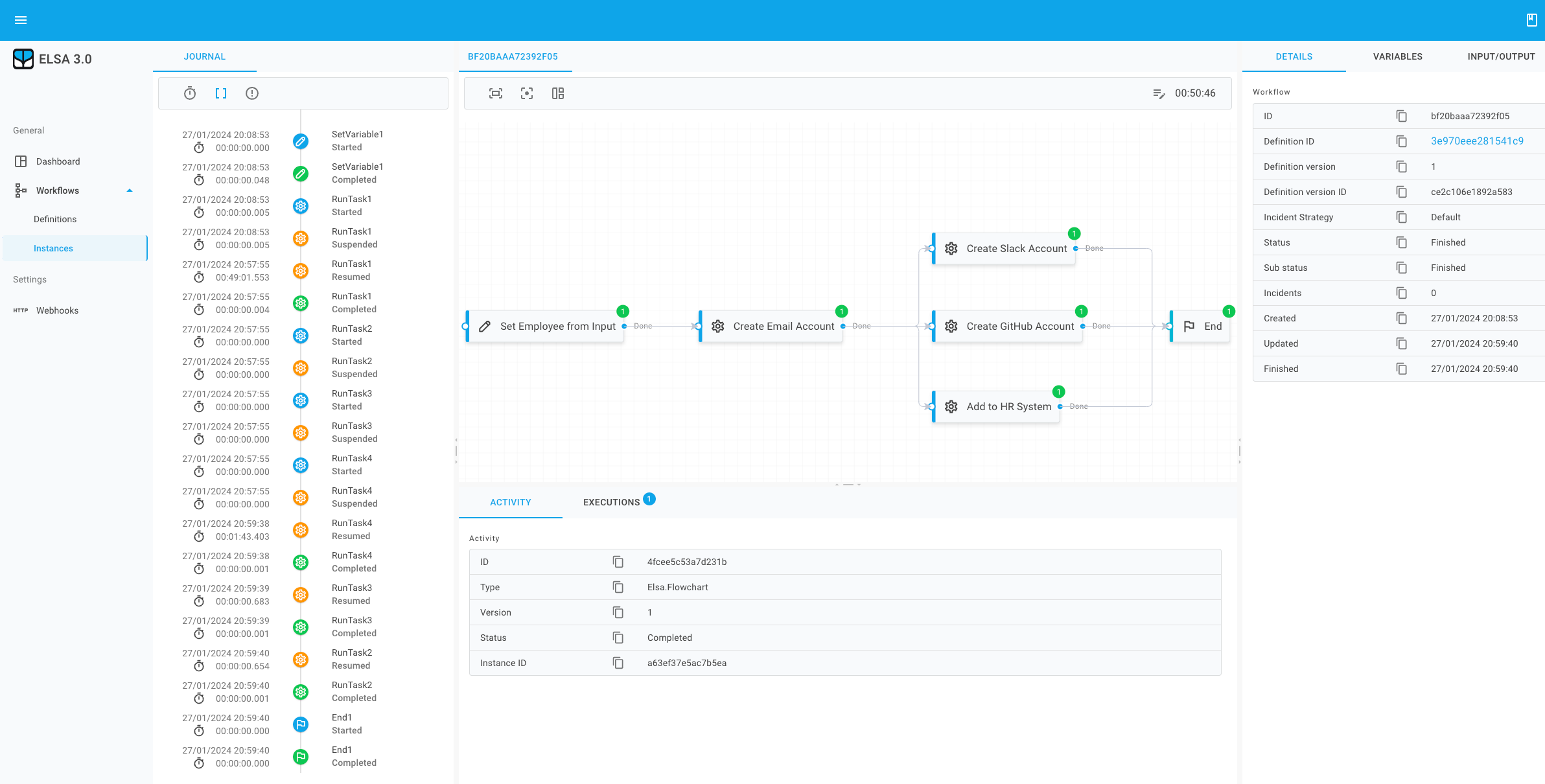

Workflow Completed

Once you complete all tasks, the workflow will be completed:

Summary

In this guide, we have seen how to set up an Elsa Server project and configure it to send webhook events to the Onboarding application.

We have seen how to leverage the Run Task activity that generates Run Task webhook events.

From the Onboarding app, we leveraged an Elsa REST API to report a given task as completed, which causes the workflow to resume,

Source Code

The completed code for this guide can be found here.

PreviousDesigner NextLoading Workflows from JSON

Last updated 13 days ago

Before you start﻿

Elsa Server﻿

Configuring Webhooks﻿

Add Webhooks Package

Update Program.cs

Update appsettings.json

Creating the Workflow

Programmatic

Designer

Designing the Workflow﻿

Connect Activities

Publish the Workflow

Creating the Onboarding Application

Create OnboardingTask Entity

Create Migrations

Apply Migrations

Running the Onboarding Process﻿

Complete Tasks

Workflow Completed

Summary﻿

Source Code﻿

Before you start

Elsa Server

Configuring Webhooks

Designing the Workflow

Running the Onboarding Process

Summary

Source Code
